Briteq BT-nanobeam-BQ1

Projecteur type "Svoboda" LED, 3000 à 6000° K, RGBW

Descriptions détaillées



Create dynamic 'light curtain effects' with this extremely powerful stage projector, based on 9pcs 60W CW/WW LEDs in combination with amazing RGB glow effects.
  • This impressive new projector is developed for use on big concert stages, TV-studios, …

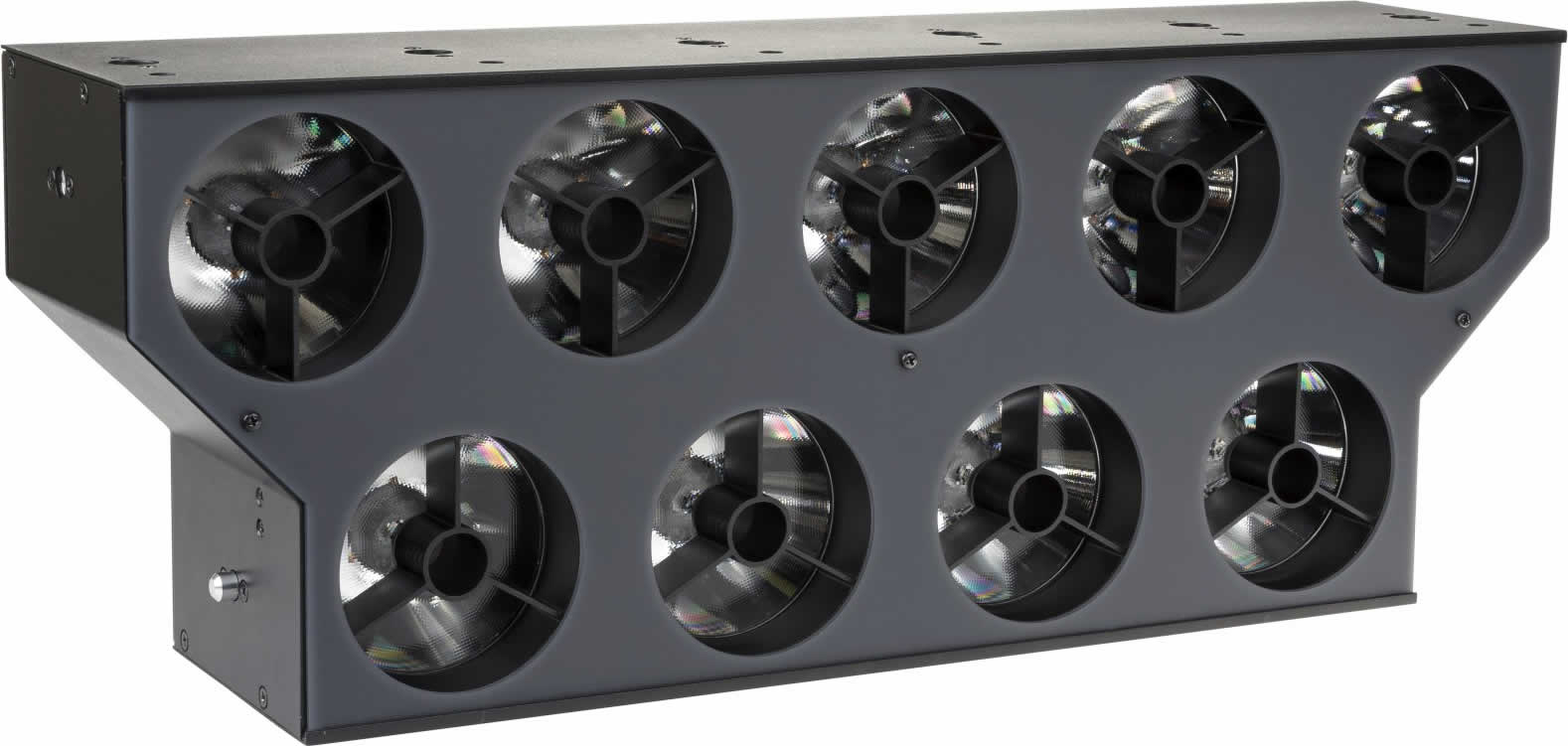

  • The 9 big lenses are each equipped with 60W CW/WW LEDs that produce powerful narrow white 4° beams. (full on: 175’000 lux @3m)
  • In a very short time several projectors can be mechanically mounted together to create dynamic “light curtain” effects with unsurpassed power !
  • The LEDs can be individually controlled to produce tunable white beams, ranging from warm 3000K with high CRI to 6000K cold white.
  • Very powerful RGB-LEDs light up the black front panel in any desired color.
  • The units includes 2 extra front panels that can be swapped easily:
  • The white front panel is used to produce very bright and saturated RGB “glow effects”
  • The semi-transmissible “mirror” front panel creates amazing creative effects simply by pointing lasers and light beams at it.
  • The 9 lenses are equipped with black anti-glare louvers, gold color louvers are optionally available. (set 9pcs)
  • 3 DMX-modes: 13, 29 and 45 channels mode for individual control of all beams and functions using 16bit dimming.
  • Control channel for remote selection of PIXEL-order, dimmer speed, dimmer curve, fan control, …)
  • RDM-function for: channel mode, DMX-address, temperature control, …
  • OLED display with backlit touch buttons for easy configuration.

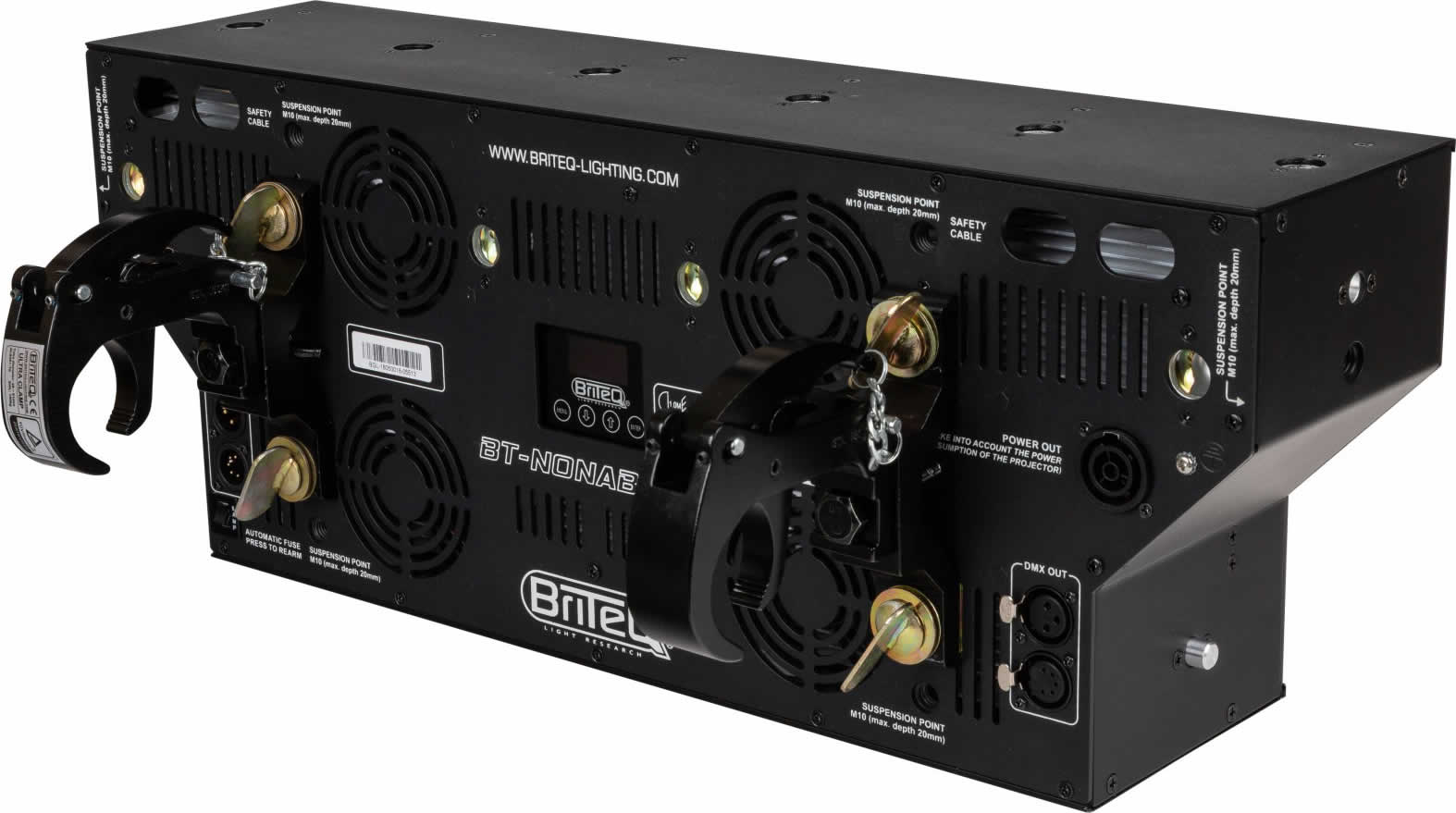

  • Easy mechanical installation with 2 included omega brackets.
  • Easily removable suspension bracket with quick locks.
  • Several M10 fixing points can be used to install the projectors in custom frames.
  • Very low-noise fans, perfect for use in noise sensitive places like theatres, TV-studios, …
  • Easy daisy chaining: 3pin & 5pin + Neutrik® PowerCON® TRUE-1 in/out.
  • Compact size (58 x 22 x 14cm) for easy transport in flight cases!
  • Optional 60x120cm flight cases (4 projectors) available.
  • Optional gold louvers (set of 9 pcs).
  • Co-designed with Marijn Broeckaert.
General
  • Application : DJ & Club, Stage & Rental, Theatre
  • Powerinput : AC 100 - 240V, 50/60Hz
  • Energy Label : No
  • Color : black
  • Display : OLED
  • Fixation : included omega bracket
  • IP rating : indoor
Control
  • manual : No
  • Master/Slave : Yes
  • SMART-DMX : No
  • Standalone : no
  • programmable : No
  • upgradable software : Yes
  • maximum DMX channels : 45
Light
  • lamp socket : none
  • lamp : LED
  • min. color temperature (K) : 3000
  • max. color temperature (K) : 6000
  • colors : Cold white, Warm white, RGBW
  • mix colors : Yes
  • focus : No
  • zoom : No
  • iris : No
  • min. beam angle (°) : 4
  • max. beam angle (°) : 4
  • min. refresh rate (kHz) : 1.2
  • max. refresh rate (kHz) : 1.2
Connections
  • input : 3 pin XLR, 5 pin XLR, TRUE1 powerCON, rdm
  • output : 3 pin XLR, 5 pin XLR, TRUE1 powerCON
