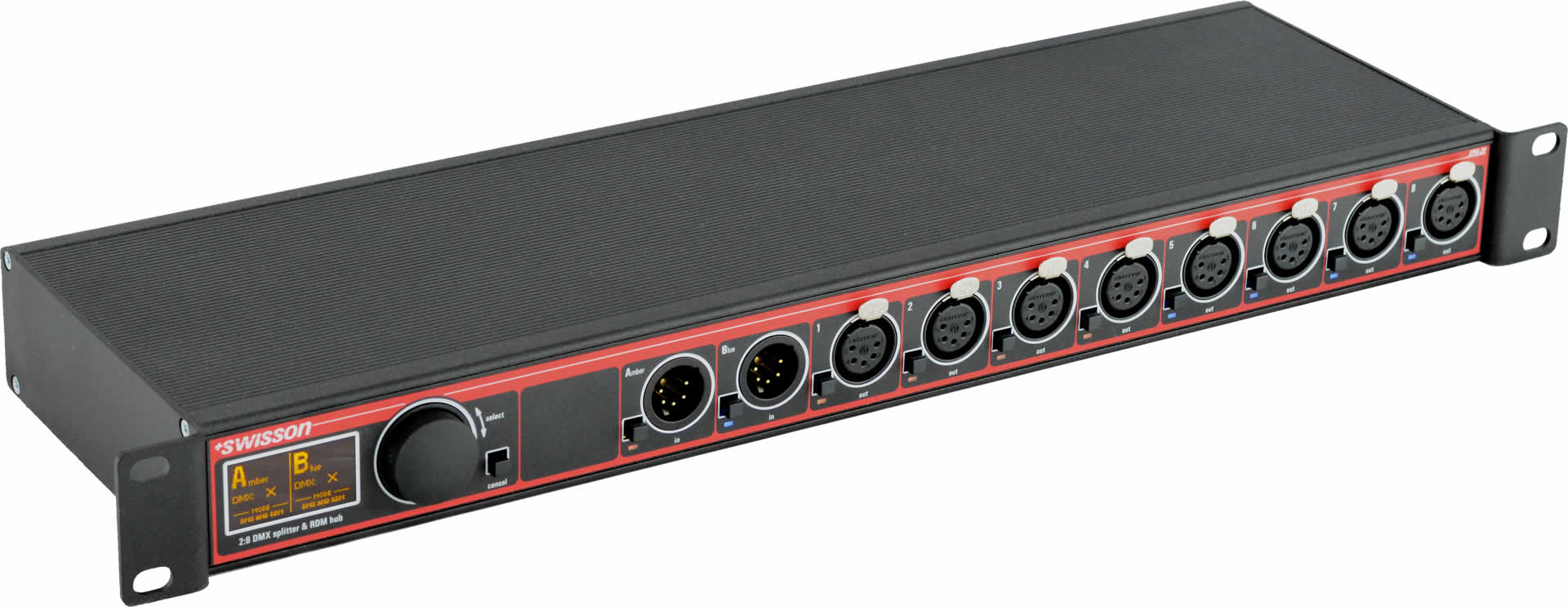

Swisson XPD-28

Splitter DMX / RDM, 2 entrées, 8 sorties

Descriptions détaillées

  • DMX splitter / booster
  • RDM capable (bidirectional)
  • 19 inch rack mountable, 1 height unit
  • 10 output modes
  • 2 failure behaviors
  • Optically isolated
  • Neutrik powerCON input and output
  • Universal power supply
  • Graphical overview of channel values
  • Display of the refresh rate
  • Can be used as a DMX “decelerator”
XPD-28 splitters boost, refresh and distribute the DMX signals of two inputs onto eight outputs. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as for building star topologies. Moreover, the XPD-28 can be used as a repeater in order to transport a DMX signal across larger distances just as well.
With XPD-28s you determine at the push of a button, to which input universe each output is connected. This allows for optimally utilizing the output ports in all situations.
Thanks to ten output modes, you can always rely on the XPD-28 being able to generate an output signal that's also understood by your legacy equipment. In spite of its features, the XPD-28 remains easy to operate with the help of an encoder wheel and eleven additional push buttons.

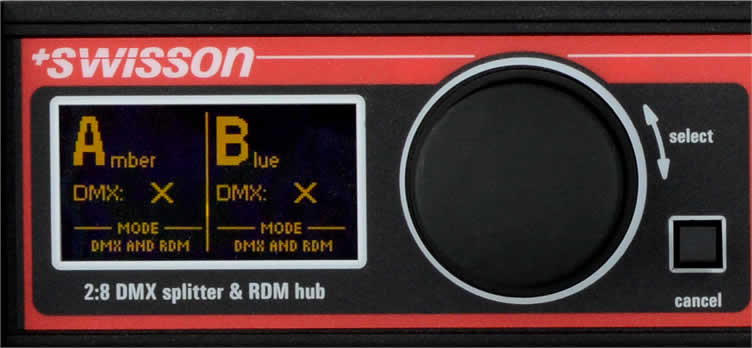

The OLED display of the XPD-28 contributes to the intuitive operation as well and provides valuable key information on the incoming signals, which can be most helpful when you need to trouble shoot or set up a larger installation.
What is more, as a fully RDM compatible, bidirectional splitter, XPD-28 is a future proof piece of equipment.

What is RDM?
RDM (Remote Device Management) is an extension of the DMX512 protocol for monitoring and configuring DMX512 equipment. It runs concurrently with DMX512 over the same cable. DMX addresses, device profiles and other parameters can be set remotely by an RDM capable light controller.
Changing the DMX address of a fixture with the ladder is not necessary anymore. Unlike DMX, RDM is a bidirectional protocol. RDM needs a splitter which can handle the bidirectional communication.
Informations
Propriétés techniques
  • Consommation électrique : 9 W
  • Dimensions en flight-case (X1) : … x … x … cm
  • Dimensions unitaires : 483 x 44,5 x 136 mm
  • Poids en flight-case (X1) : … kg
  • Poids unitaire : 1,7 kg
